Oilfield Energy Storage Systems
Cut diesel cost on well sites with hybrid battery storage proven in the field since 2022: workover-rig systems at 180.5/108.2kWh, grid-tied 1,490kWh and off-grid 1,225kWh drilling and fracking containers — running at 8.1% of the energy cost of diesel-driven rigs.
Workover Rig Systems (180.5 / 108.2 kWh)
| Item | 180.5kWh | 108.2kWh |
|---|---|---|
| Rated voltage / capacity | 521.64V / 346Ah | 515.2V / 210Ah |
| Configuration | 162S2P | 160S2P |
| Continuous / pulse discharge | 346A / 400A (30s) | 210A / 300A (30s) |
| Thermal management | Liquid cooling + heating, insulation option | Liquid cooling + heating |
| Dimensions / weight | 2000×830×1450mm / 1,700kg | 1870×890×1450mm / 950kg |
Operating mode: peak shaving plus energy recovery on the draw-works cycle. Field record: commissioned December 2022 and running across multiple major onshore oilfields; energy cost reduced to 8.1% of pure diesel operation (case data).

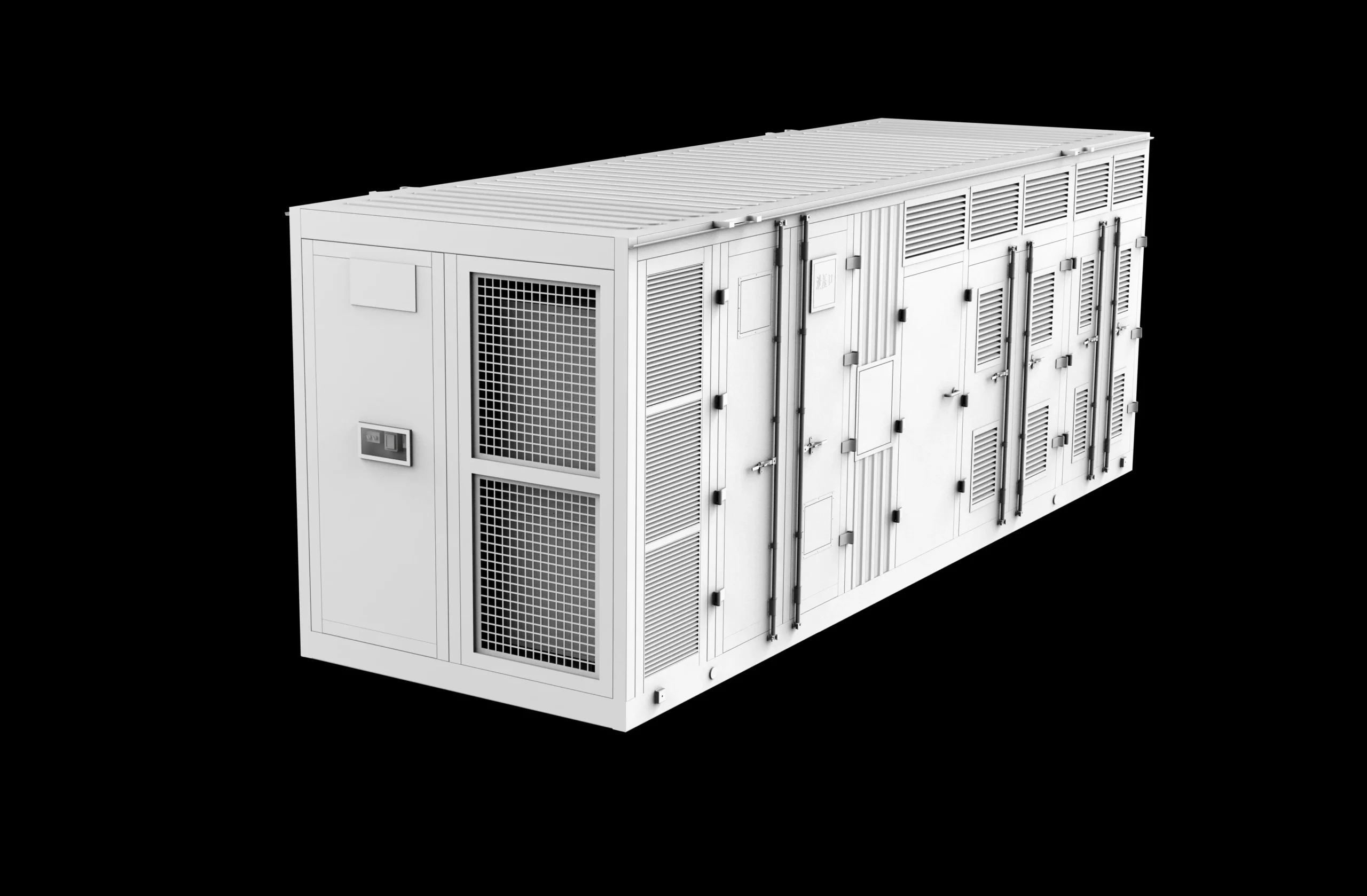

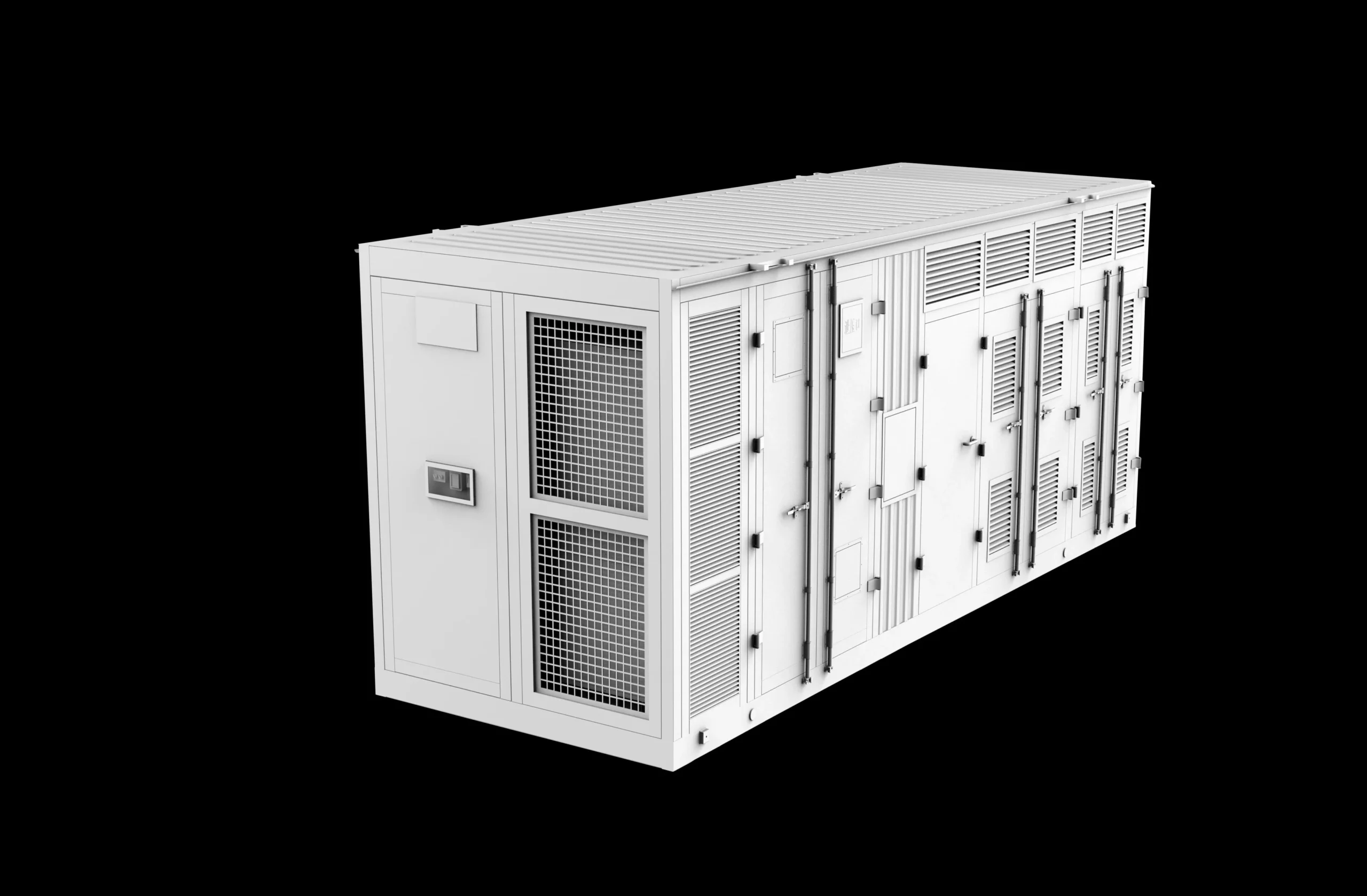

Drilling & Fracking Containers
| Item | Grid-tied | Off-grid |
|---|---|---|
| Power / energy | 1,000kW / 1,490kWh | 1,200kW / 1,225kWh |
| Cells | 280Ah high-energy-density | 173Ah high-rate (≥3,000 cycles @1C) |
| Footprint / weight | L8465×W2680×H3100mm / ≈25T | L7500×W2800×H3000mm / ≈22T |
| Interfaces | Ethernet / RS485 / CAN | Ethernet / RS485 / CAN |
Diesel-to-Hybrid Path
- 1. Load audit — rig cycle, generator count, fuel logs.
- 2. Configuration — capacity and inverter sizing against the audit.
- 3. Integration — parallel into the existing rig power network (integration drawing set included).
- 4. Optimization — dispatch tuning plus remote monitoring over the EMS interface.
FAQ
What is workover rig energy storage?
A battery system that parallels the rig’s diesel gensets to shave peaks and recover lowering energy, cutting diesel use — ours run at 180.5/108.2kWh with liquid heating for cold sites.
How much diesel can it save?
Industry studies report 20–30% fuel reduction for hybrid rig power; our field deployments report energy cost down to 8.1% of pure diesel operation.
Can it handle fracking peak loads?
The grid-tied 1,490kWh/1,000kW and off-grid 1,225kWh/1,200kW containers are sized for fracturing fleet load profiles.
Cold-climate operation?
Workover systems ship with liquid heating and insulation options; the platform is rated to -30°C.
