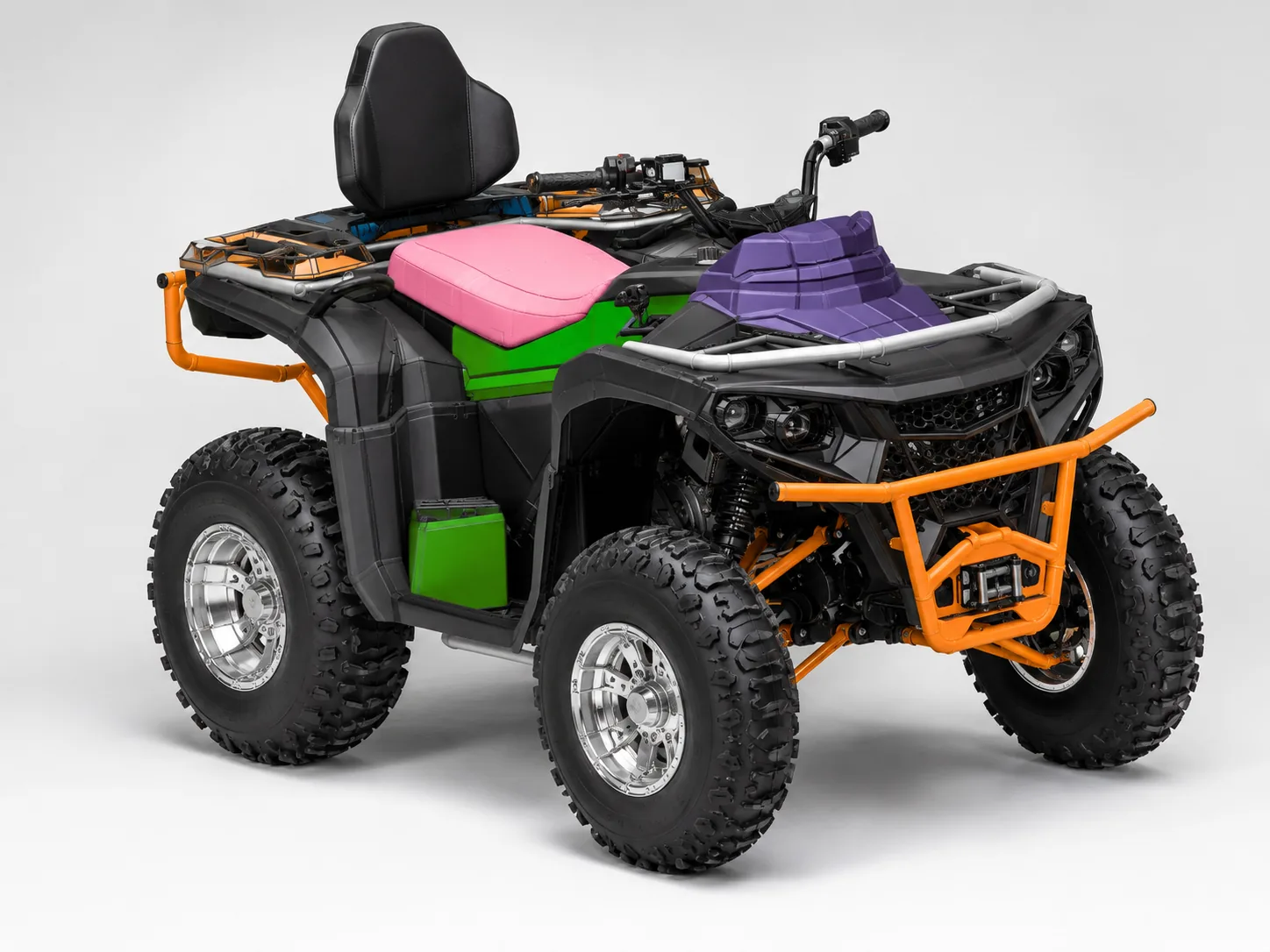

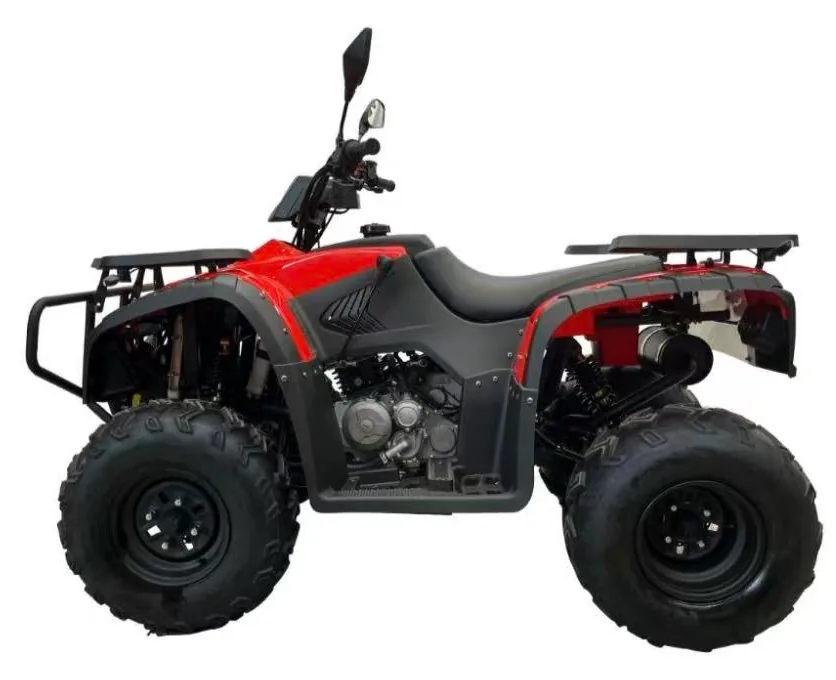

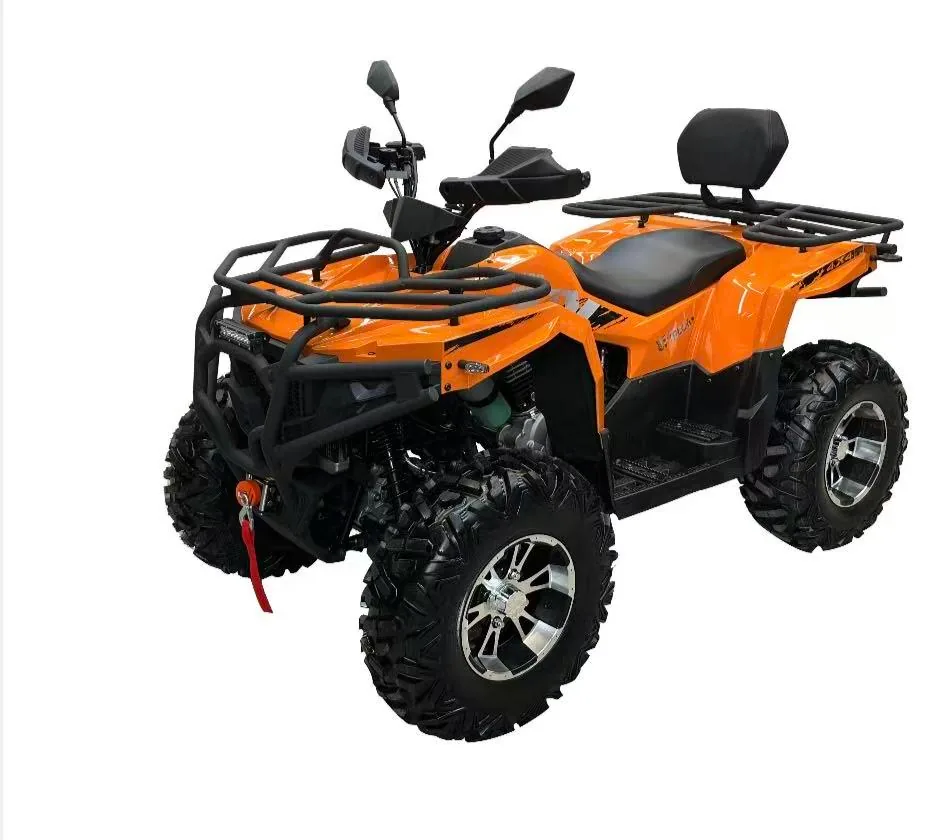

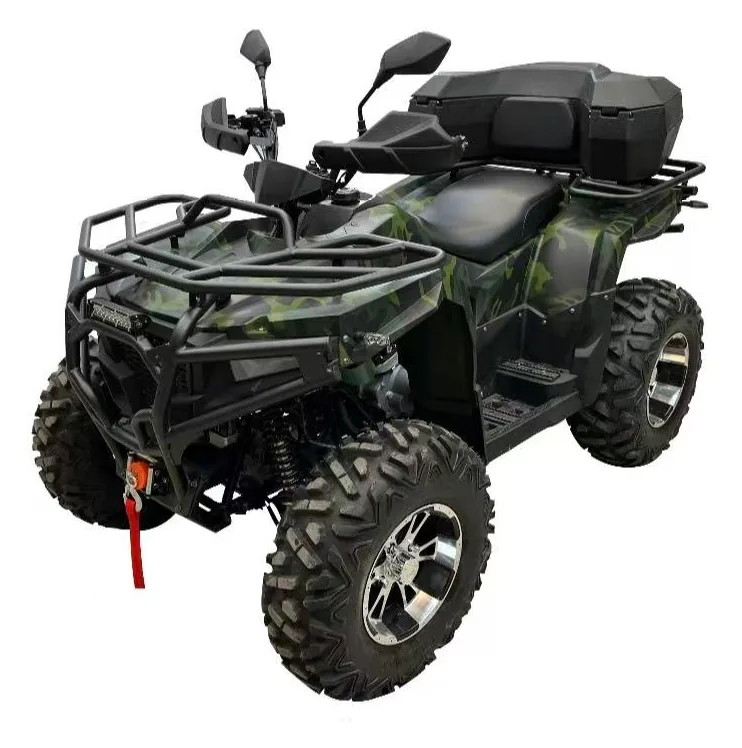

RAPTOR 600 4×4 Sport ATV
35kW from a 580cc water-cooled EFI engine with CVT high/low, shaft drive, selectable 2WD/4WD and differential lock — engineered as a workhorse for farm, trail and hunting-ranch programs.
Product Images
Highlights
Altitude and temperature compensation without retuning — fewer field complaints across export markets.
No chain maintenance and real traction when it matters — the two features farm buyers ask for first.
One machine covers trail speed and heavy-pull torque without gear training for end users.
Hydraulic-damped ride keeps loads stable at 230 kg rated capacity.
Applications
Full Specifications
RAPTOR 600 (4×4):
| Item | Specification | Evidence |
|---|---|---|
| Engine | 580cc single cylinder, 4-stroke, water-cooled, SOHC 4-valve, EFI | T1 · Factory spec |
| Bore × stroke / compression | 91 × 89.2 mm / 10.7:1 | T1 · Factory spec |
| Max power / torque | 35 kW @ 6,500 rpm / 55 N·m @ 6,000 rpm | T1 · Factory spec |
| Transmission | CVT with high/low range, sliding-track clutch | T1 · Factory spec |
| Final drive | Shaft drive, selectable 2WD/4WD, differential lock | T1 · Factory spec |
| Suspension / brakes | Independent double A-arm, hydraulic disc front & rear | T1 · Factory spec |
| Load / climbing / top speed | 230 kg / 30° / 90 km/h | T1 · Factory spec |
| Starting / fuel | Electric start, PEI ignition / 92 RON unleaded or higher | T1 · Factory spec |
| EXPLORER 250 / 300 / 400 | Entry utility ATVs, 2WD or AWD — per-model sheet on request | T2 · Catalog |
Evidence codes: T1 = factory specification sheet (engineering catalog with text layer), T2 = product catalog, T3 = field/case data.
Four product lines — vehicles, energy storage, farm machinery and engines — from long-established Chongqing manufacturing bases, exported through one channel under one QC standard.
- One mixed container — vehicles, batteries, machines and spares ship together; 220+ SKUs on one loading plan cuts freight and admin cost per line.
- One QC & export standard — factory specification sheet and certification status attach to every quotation, answered within 24 hours.
- Field-proven flagship tech — immersion-cooled storage in oilfield service since 2022 at 8.1% of diesel energy cost.
- SKD / CKD routes — local-assembly programs ready where import policy requires them.
How to Choose
- Payload over speed — farm and estate buyers should size by bed payload and towing (CAMENO up to 1,200kg) before engine output.
- Drivetrain for terrain — 4×4 with differential lock for wet and rutted ground; shaft drive keeps maintenance low on work fleets.
- Petrol versus electric — petrol 650/1000 for range and refueling infrastructure; 15kW EV for fenced estates and low running cost.
Where this line sits
The RAPTOR 600 sits at the agile end — EFI responsiveness on a 4×4 platform that still hauls and tows.
ATV & UTV Family Finder
| Line | Power | Duty | Best for |
|---|---|---|---|
| CAMENO UTV 650/1000/EV | 650cc–1000cc + 15kW EV | 4×4 side-by-side, up to 1,200kg payload | Farms, estates, utility fleets |
| RAPTOR 600 Sport ATV | 580cc EFI water-cooled | Sport & utility quad, shaft drive | Trail, sport, light farm duty |
Compare the full range: All ATV & UTV →
Application & Site Photos
Application photos, company floor and exhibition photos for this line are being prepared — tell us your market and we share the matching site set with your quotation.
How It Performs in the Field
The pain points buyers raise most — and what the line does about them:
- Dealers need differentiated sport units beyond commodity ATVs — the RAPTOR 600 pairs EFI with a 4×4 sport chassis.
- One sport platform serves utility, trail and farm duties with a shared parts bin.
Trade & Ordering Notes
- Mixed loading is standard — mixed models and mixed categories in one container are accepted; per-model MOQ is confirmed in the quotation.
- 24-hour quotations — specification-matched replies on business days, with the factory specification sheet and certification status attached.
- Terms confirmed in writing — payment, production lead time and warranty are fixed per model and destination in the quotation, with no post-signing surcharges.
- Export-ready documentation — HS classification and the export document set are issued per model; SKD/CKD component programs are available where market policy requires local assembly.
How We Work with You
FAQ
Is the 580cc ATV good for farm work?
Yes — 230 kg load, shaft drive and differential lock make it suitable for towing and rough terrain; CVT low range handles heavy pulls.
Fuel requirement?
92 RON unleaded or higher; EFI compensates for altitude and temperature.
Top speed and climbing?
90 km/h and 30° climbing angle, factory specification.
Available displacements?
580cc flagship plus EXPLORER 250/300/400 for entry wholesale programs.
Get wholesale pricing on the RAPTOR 600 and EXPLORER series.
Specification-matched quotation with certification status, replied within 24 hours on business days.
